Lima Locomotive & Machine Co.

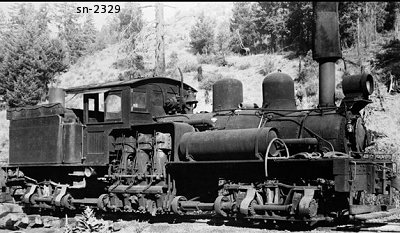

Photo Credit:
by Albert Farrow (10-1943)
Shop Number 2329 - Built for: Rose Lake Lbr. Co.
{1,768th Lima Built Shay}
Built:
06-06-1910
Class:
B
42-2
Trucks:
2
Cylinders:
[#-Diam x Stroke]
3 - 10 x 12
Gear Ratio:
2.05
Wheel Diam:
29.5"
Gauge:
std.
Boiler:
[Style - Diam.]
E.W.T. - 42.125"
Boiler Pressure:
In Lbs. (PSI)
180
 Tractive Effort:
16,886 Lbs.
 Factor of
Adhesion:
5.00
 Maximum
Safe Speed:
17.1
Fuel Type:
Wood / Coal
 Fuel Capacity:
1.5 Cords / 2 Tons
 Water Capacity:
1,560 Gallons
Empty Weight:
As built
69,200
Owners:
Hofius Steel & Equip. Co. (D), Seattle, WA
Rose Lake Lbr. Co. #3, Cataldo, ID
(1918) Rose Lake Lbr. Co. #3, Dudley, ID
(c1921) Winton-Rosenbury Lbr. Co. #3, Bovill, ID
(1923) Winton Lbr. Co. #3, Cataldo, ID
(5-8-1925) Hofius Steel & Equip. Co. (D), Seattle, WA
(3-4-1929) Cascade Lbr. Co. #3, Casland, WA
(10-1930) Cascade Lbr. Co.#3, Virden, WA
(1935) Cascade Lbr. Co. #3, Thorp, WA
(1939) Cascade Lbr. Co. #3, Virden, WA
(1946) stored at NP interchange
(1949) M. Bloch & Co., Seattle, WA
Disposition: (1949) Scrapped
Additional Notes: Converted to oil burner
