Lima Locomotive & Machine Co.

Photo Credit:
Both: by Unknown

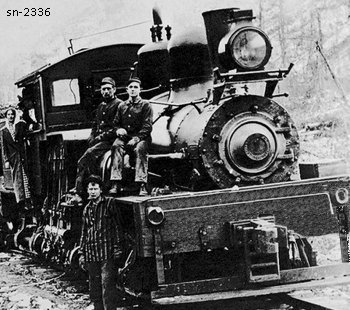

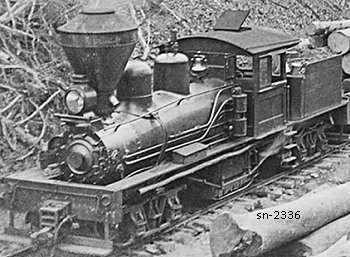

Shop Number 2336 - Built for: J. A. Dennison
{1,775th Lima Built Shay}
Built:
09-30-1910
Class:
B
42-2
Trucks:
2
Cylinders:
[#-Diam x Stroke]
3 - 10 x 12
Gear Ratio:
2.05
Wheel Diam:
29.5"
Gauge:
std.
Boiler:
[Style - Diam.]

E.W.T. - 42.125"
Boiler Pressure:
In Lbs. (PSI)
180
Tractive Effort:
16,886 Lbs.
Factor of
Adhesion:

5.01
Maximum
Safe Speed:

17.1
Fuel Type:
Coal
Fuel Capacity:
2 Tons
Water Capacity:
1,560 Gallons
Empty Weight:
As built
67,700
Owners:
J. A. Dennison #1, Beard, WV; For:
Maryland Lbr. Co. #1, Denmar, WV
(by 10-8-1918) Raine Lbr. Co., Honeydew, WV
(8-2-1945) Honeydew Lbr. Co. #2, Honeydew, WV
(8-2-1945) Meadow River Lbr. Co. #1, Rainelle, WV, (parts only)
Disposition: (8-2-1945) Scrapped
Additional Notes:
