Lima Machine Works

Photo Credit:

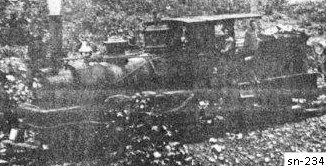

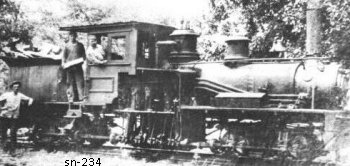

Left: Belle Dyer collection - Right: David Thomas collection
Shop Number 234 - Built for: Malvern Lbr. Co.
{200th Lima Built Shay}
Built:
3-11-1889
Class:
B
20-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 9x8
Gear Ratio:
2.176
Wheel Dia.:
26"
Gauge:
37"
Boiler:
[Style - Dia.]
W.T. - 36"
Boiler Pressure:
In Lbs. (PSI)
160
 Tractive Effort:
9,762 Lbs.
 Factor of
Adhesion:
4.48
 Maximum
Safe Speed:
14.2
Fuel Type:
Coal
Fuel Capacity:
1.25 Tons
Water Capacity:
825 Gallons
Empty Weight:
As built
34,000
Owners:
Malvern Lbr. Co. #2, Malvern, AR
(1904) [36"] Saginaw Lbr. Co., Saginaw, AR
(1914) Van Veneer Co., Malvern, AR
(11-24-1919) Moore & McFerrin #2 later #5, McFerrin, AR
(1-4-1926) Lee Wilson & Co., Wilson Northern RR, Wilson, AR (Likely for parts)
Disposition: (10-1-1926) Scrapped
Additional Notes:
