Lima Locomotive & Machine Co.

Photo Credit:
by Unknown

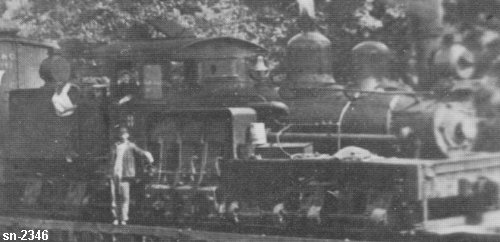

Shop Number 2346 - Built for: F. S. Wise & Co.
{1,785th Lima Built Shay}
Built:
07-15-1910
Class:
B
36-2
Trucks:
2
Cylinders:
[#-Diam x Stroke]
3 - 10 x 10
Gear Ratio:
2.05
Wheel Diam:
29"
Gauge:
std.
Boiler:
[Style - Diam.]
E.W.T. - 39.375"
Boiler Pressure:
In Lbs. (PSI)
180
 Tractive Effort:
14,316 Lbs.
 Factor of
Adhesion:
5.16
Maximum
Safe Speed:
16.8
Fuel Type:
Coal
Fuel Capacity:
1.75 Tons
Water Capacity:
1,200 Gallons
Empty Weight:
As built
59,450
Owners:
F. S. Wise & Co. #3, Winterburn, WV
(4-1-1913) F. S.Wise & Sons #3 , Clover Lick, WV
(11-20-1917) A. D. Neill & Son #1, Clover Lick, WV
(11-12-1923) For sale
Marlin Lbr. Co. #3, Stillwell, WV
Disposition: Scrapped
Additional Notes:
