Lima Locomotive & Machine Co.

Photo Credit:

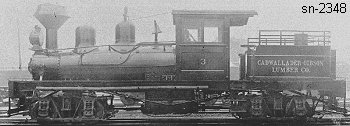

Top: George R. Kadelak collection
Right: by Peter Netteship (1970's)
Shop Number 2348 - Built for: Cadwallader-Gibson Lbr. Co.
{1,787th Lima Built Shay}
Built:
12-31-1910
Class:
B
24-2
Trucks:
2
Cylinders:
[#-Diam x Stroke]
3 - 8 x 8
Gear Ratio:
3.071
Wheel Diam:
27.5"
Gauge:
36"
Boiler:
[Style - Diam.]
E.W.T. - 33.5"
Boiler Pressure:
In Lbs. (PSI)
160
 Tractive Effort:
10,292 Lbs.
 Factor of
Adhesion:
5.29
 Maximum
Safe Speed:
10.7
Fuel Type:
Wood / Coal
 Fuel Capacity:
1.25 Cords / 1.5 Tons
 Water Capacity:
850 Gallons
Empty Weight:
As built
44,688
Owners: (Includes new data after 2018 Shay book completed)
Cadwallader-Gibson Lbr. Co. #3, Limay, Bataan Province, U. S. Territory of the Philippines
(3-1922) Philippine Sugar Sales Agency, Manila, Luzon, U. S. Territory of the Philippines
Talisay Silay Milling Co., Manila, Luzon, U. S. Territory of the Philippines
(5-10-1938) [42"] Insular Lbr. Co. #10, Fabrica, Negros Occidental, U. S. Territory of the Philippines
(7-4-1946) Insular Lbr. Co. #10, Fabrica, Negros Occidental, Republic of the Philippines
(c1975) Insular Lbr. Co. #10, Hinoba-an, Negros Occidental, Republic of the Philippines
Disposition: Still in use in 1990
Additional Notes: Shipped to: Manila, Philippine Islands
