Lima Machine Works

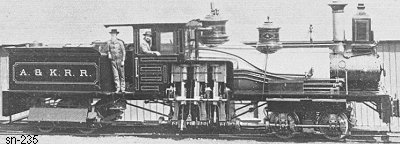

Photo Credit:
Baldwin-Lima-Hamilton Corporation collection (BP 4-1889)
Shop Number 235 - Built for: S. S. Bullis
{201st Lima Built Shay}
Built:
4-11-1889
Class:
B
37-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 11x10
Gear Ratio:
2.050
Wheel Dia.:
29.5"
Gauge:
std.
Boiler:
[Style - Dia.]
W.T. - 42"
Boiler Pressure:
In Lbs. (PSI)
160
 Tractive Effort:
15,135 Lbs.
 Factor of
Adhesion:
4.55
 Maximum
Safe Speed:
17.1
Fuel Type:
Coal
Fuel Capacity:
3.25 Tons
Water Capacity:
1,740 Gallons
Empty Weight:
As built
49,600
Owners:
S. S. Bullis, Bradford, PA; For:
Allegheny Lbr. Co., Allegheny & Kinzua RR #4, Bradford, PA
C. H. & W. A. Rexford, Galeton, PA
(c1910) Emporium Lbr. Co. #4, Galeton, PA
(c1911) Emporium Forestry Co. #34, Conifer, NY
Disposition: (1930's) Scrapped
Additional Notes: ??Owner: R. W. Higlee Company, Newton Falls, NY
