Lima Locomotive & Machine Co.

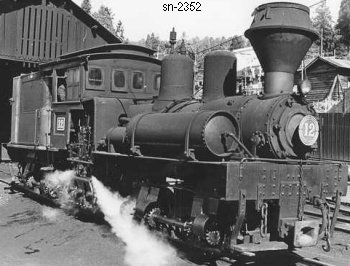

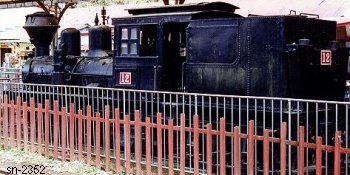

Photo Credit: Left: Su I-Jaw collection Right: Eiji Nozawa (11-1976)

Shop Number 2352	-	Built for: Alishan Forest RY
{1,791st Lima Built Shay}

Built: 8-10-1910	Class: A 18-2	Trucks: 2	Cylinders: [#-Dia. x Stroke] 2 - 7 x 12
Gear Ratio: 3.071	Wheel Dia.: 26.5"	Gauge: 30"	Boiler: [Style - Dia.] ST. - 31.5"
Boiler Pressure: In Lbs. (PSI) 160	Tractive Effort: 8,177 Lbs.	Factor of Adhesion: 5.00	Maximum Safe Speed: 10.3
Fuel Type: Wood	Fuel Capacity: 0.75 Cord	Water Capacity: 730 Gallons	Empty Weight: As built 33,689
Owners: Ed L. Van Nierop & Co. (Japan Trading Co.), Yokohama, Japan (Importer) For: Alishan Forest RY #12, Kirun (Kelâng), Formosa (Japan) (1945) Alishan Forest RY #12, Keelung (Chilung), Taiwan
Disposition: On display at Alishan New Station, Chiayi, Taiwan
Additional Notes: Shipped to: Kirun (now Keelung), Formosa ( now Taiwan). Note: Keelung is or has also been known as: Chilung, Chi-lung, Ke-lâng, Kilung, and Kirun. The true origin of the second Alishan Forest Railway #13 cannot be verified. It is either sn-2351 [#11] or sn-2352 [#12]. There is only one original LIMA mark left on any of the Alishan RY Shays and it has no number. All of their Shays have been re-built, changing much of the original Lima product. Most were renumbered for various reasons without regard to Lima Shop Numbers over the years. SLc Survivor List
