Lima Locomotive & Machine Co.

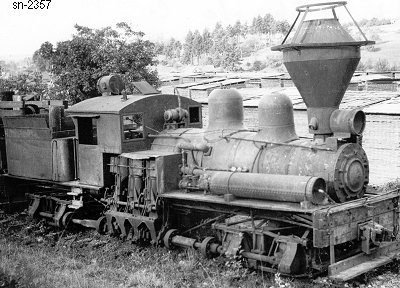

Photo Credit:
by Doug Richter (9-2-1937)
Shop Number 2357 - Built for: Doty Lbr. & Shingle Co.
{1,796th Lima Built Shay}
Built:
7-23-1910
Class:
B
42-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 10 x 12
Gear Ratio:
2.05
Wheel Dia.:
29.5"
Gauge:
std.
Boiler:
[Style - Dia.]
E.W.T. - 42.125"
Boiler Pressure:
In Lbs. (PSI)
180
 Tractive Effort:
16,886 Lbs.
 Factor of
Adhesion:
5.06
 Maximum
Safe Speed:
17.1
Fuel Type:
Wood
Fuel Capacity:
1.5 Cords
Water Capacity:
1,560 Gallons
Empty Weight:
As built
70,300
Owners:
Hofius Steel & Equip. Co. (D), Seattle, WA
Doty Lbr. & Shingle Co., Elk Creek & Gray's Harbor RY #4, Doty, WA
Eastern Railway & Lbr. Co. #8 (2nd), Centralia, WA
Western Loggers Machinery Co. (D), Portland, OR
(4-19-1929) The Marsh Co., Centralia, WA
Disposition: Scrapped
Additional Notes:
