Lima Locomotive & Machine Co.

Photo Credit:
John T, Labbe collection

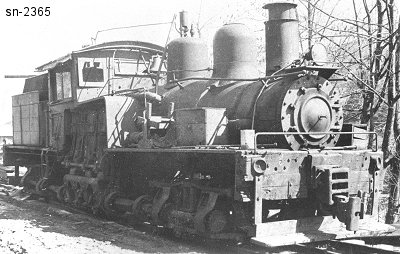

Shop Number 2365 - Built for: C. C. Masten Log. Co
{1,804th Lima Built Shay}
Built:
8-16-1910
Class:
B
42-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 10 x 12
Gear Ratio:
2.05
Wheel Dia.:
29.5"
Gauge:
std.
Boiler:
[Style - Dia.]
E.W.T. - 42.125"
Boiler Pressure:
In Lbs. (PSI)
180
 Tractive Effort:
16,886 Lbs.
 Factor of
Adhesion:
4.93
Maximum
Safe Speed:
17.1
Fuel Type:
Wood
Fuel Capacity:
1.5 Cords
Water Capacity:
1,560 Gallons
Empty Weight:
As built
68,000
Owners:
Hofius Steel & Equip. Co. (D), Seattle, WA
St. Helens Log. Co. #2, St. Helens, OR
(11-1910) St. Helens Mill Co. #2, St. Helens, OR
(11-1911) St. Helens Tbr. Co. #2, St. Helens, OR
(1915) St. Helens Lbr. Co. #2, St. Helens, OR
(2-1917) Milton Creek Log. Co. #2, Yankton, OR
(2-9-1927) For sale
(5-1936) Bridal Veil Tbr. Co., Palmer, OR
Disposition: (early 1940's) Scrapped
Additional Notes:
In Lima records, built for C. C. Masten Logging Co. however company sold to St Helens Log. Co. by the time the Shay was delivered.
Converted to oil burner
