Lima Locomotive & Machine Co.

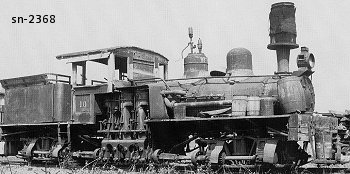

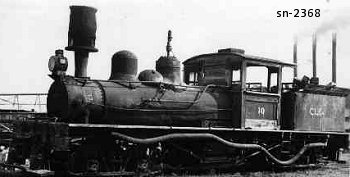

Photo Credit:
Left: Martin E. Hansen collection - Right: by C. W. Witbeck
Shop Number 2368 - Built for: Murphy & Diggins
{1,807th Lima Built Shay}
Built:
8-20-1910
Class:
B
32-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 8 x 12
Gear Ratio:
3.071
Wheel Dia.:
29"
Gauge:
36"
Boiler:
[Style - Dia.]
E.W.T. - 37.25"
Boiler Pressure:
In Lbs. (PSI)
160
 Tractive Effort:
14,639 Lbs.
 Factor of
Adhesion:
4.62
Maximum
Safe Speed:
11.2
Fuel Type:
Coal
Fuel Capacity:
1.75 Tons
Water Capacity:
1,500 Gallons
Empty Weight:
As built
52,300
Owners:
Murphy & Diggins #10, Cadillac, MI
Central Lbr. Co. #10, Quentin, MS
Disposition: (4-1942) Scrapped
Additional Notes:
