Lima Locomotive & Machine Co.

Photo Credit:

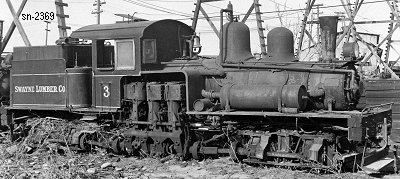

Left: Robert Hanft collection (1940's)

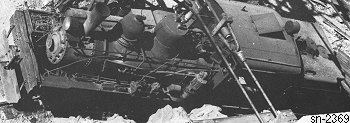

Right: Andrew Brandon collection (1940)
Shop Number 2369 - Built for: Truckee Lbr. Co.
{1,808th Lima Built Shay}
Built:
9-16-1910
Class:
B
36-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 10 x 10
Gear Ratio:
2.05
Wheel Dia.:
29"
Gauge:
36"
Boiler:
[Style - Dia.]

E.W.T. - 39.375"
Boiler Pressure:
In Lbs. (PSI)
180
Tractive Effort:
14,315 Lbs.
Factor of
Adhesion:

5.63
Maximum
Safe Speed:

16.8
Fuel Type:
Oil
Fuel Capacity:
800 Gals.
Water Capacity:
1,200 Gallons
Empty Weight:
As built
66,400
Owners:
Norman B. Livermore & Co. (D), San Francisco, CA
Truckee Lbr. Co., Butte & Plumas RY Co. #3, Oroville, CA
(1917) Swayne Lbr. Co. #3 (2nd), Oroville, CA
(12-19-1940) Michigan-California Lbr. Co. #4 (2nd), Camino, CA
Converted to oil burner
Disposition: Scrapped 1953
Additional Notes:
