Lima Locomotive & Machine Co.

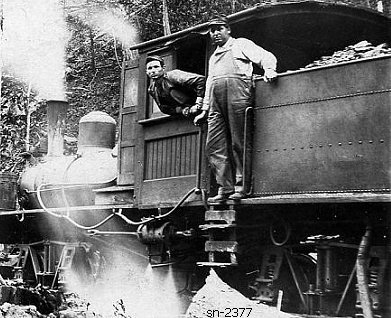

Photo Credit:
David Thomas collection

Shop Number 2377	-	Built for: Burnam & Hooker
{1,816th Lima Built Shay}

Built: 9-28-1910	Class: A 18-2	Trucks: 2	Cylinders: [#- Dia. x Stroke] 2 - 7 x 12
Gear Ratio: 3.071	Wheel Dia.: 26"	Gauge: 36"	Boiler: [Style - Dia.] ST. - 31.5"
Boiler Pressure: In Lbs. (PSI) 160	Tractive Effort: 8,334 Lbs.	Factor of Adhesion: 5.12	Maximum Safe Speed: 10.1
Fuel Type: Coal	Fuel Capacity: 1 Ton	Water Capacity: 720 Gallons	Empty Weight: As built 34,700
Owners: Burnam & Hooker #1, Chester, VA F. A. Burnham, Chesterfield Co., VA Southern Lbr. & Mfg. Co., Norma, TN Gennett Lbr. Co. #2, Norma, TN Birmingham Rail & Loco. Co. (D), Birmingham, AL (5-9-1923) L. J. DeHass Lbr. Co., #1, Sorrento, LA (by 6-19-1926) DeHass-Eby Lbr. Co., #1, Sorrento, LA
Disposition: Scrapped
Additional Notes:
