Lima Locomotive & Machine Co.

Photo Credit:

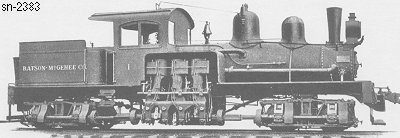

Pacific Coast Shay by Dan Ranger Jr. (BP 3-1911)
Shop Number 2383 - Built for: Batson-McGehee Lbr. Co.
{1,822nd Lima Built Shay}
Built:
3-11-1911
Class:
B
36-2
Trucks:
2
Cylinders:
[#- Dia. x Stroke]
3 - 10 x 10
Gear Ratio:
2.05
Wheel Dia.:
29"
Gauge:
std.
Boiler:
[Style - Dia.]

E.W.T. - 39.375"
Boiler Pressure:
In Lbs. (PSI)
180
Tractive Effort:
14,315 Lbs.
Factor of
Adhesion:

5.23
Maximum
Safe Speed:

16.8
Fuel Type:
Wood
Fuel Capacity:
1.5 Cords
Water Capacity:
1,200 Gallons
Empty Weight:
As built
62,000
Owners:
Batson-McGehee Lbr. Co. #1 (1st), Millard, MS
Birmingham Rail & Loco. Co. (D), Birmingham, AL
(11-25-1920) Chopin Lbr. Co. Inc. #1, Alexandria, LA
(5-7-1925) For sale
(3-1930) Glen Hill Gravel Co. #1, Rhinehart, LA
Disposition: Scrapped
Additional Notes: Shipped to: Slidell, LA
