Lima Locomotive & Machine Co.

Photo Credit:
Walter Casler collection

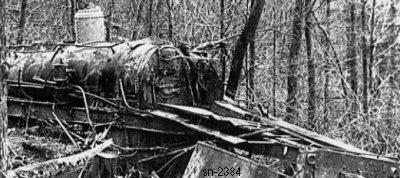

Shop Number 2384 - Built for: Perley & Crockett Lbr. Co.
{1,823rd Lima Built Shay}
Built:
10-21-1910
Class:
B
50-2
Trucks:
2
Cylinders:
[#- Dia. x Stroke]
3 - 11 x 12
Gear Ratio:
2.211
Wheel Dia.:
32"
Gauge:
std.
Boiler:
[Style - Dia.]
E.W.T. - 44.25"
Boiler Pressure:
In Lbs. (PSI)
200
 Tractive Effort:
22,563 Lbs.
 Factor of
Adhesion:
4.75
 Maximum
Safe Speed:
17.2
Fuel Type:
Coal
Fuel Capacity:
3.75 Tons
Water Capacity:
2,000 Gallons
Empty Weight:
As built
83,600
Owners:
Perley & Crockett Lbr. Co. #3, Jenningston, WV
Honaker Lbr. Co. (Russell Fork Trans. Co.), Honaker, VA
The White Oak Lbr. Co. #3, Putnam, VA
(by 4-5-1927) Appalachian Lbr. Co. #3, Pickens, SC
Disposition: Scrapped/Abandoned
Additional Notes:
