Lima Locomotive & Machine Co.

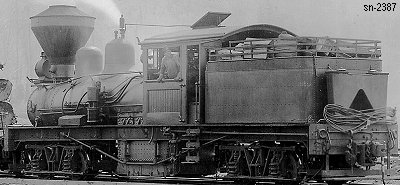

Photo Credit:
by Darius Kinsey from Joanne O'Neil collection (6-1912)
Shop Number 2387 - Built for: Stephens-Bird Log. & Lbr. Co.
{1,826th Lima Built Shay}
Built:
11-3-1910
Class:
B
50-2
Trucks:
2
Cylinders:
[#- Dia. x Stroke]
3 - 11 x 12
Gear Ratio:
2.211
Wheel Dia.:
32"
Gauge:
std.
Boiler:
[Style - Dia.]
E.W.T. - 44.25"
Boiler Pressure:
In Lbs. (PSI)
200
 Tractive Effort:
22,563 Lbs.
 Factor of
Adhesion:
4.56
 Maximum
Safe Speed:
17.2
Fuel Type:
Wood
Fuel Capacity:
2 Cords
Water Capacity:
1,750 Gallons
Empty Weight:
As built
84,900
Owners:
Hofius Steel & Equip. Co. (D), Seattle, WA
Stephens-Bird Log. & Lbr. Co., #3, Monroe, WA (1)
(8-11-1926) Dry Creek Log. Co. #3, Tahuya, WA
Disposition: Scrapped
Additional Notes: (1) Local name: Stephens-Bird Lbr. Co.
