Lima Locomotive & Machine Co.

Photo Credit:
Louglas S. Richter collection

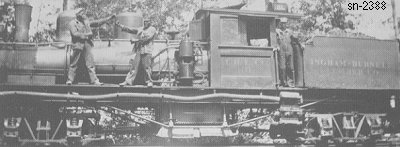

Shop Number 2388 - Built for: New York & Pennsylvania Co.
{1,827th Lima Built Shay}
Built:
11-19-1910
Class:
B
42-2
Trucks:
2
Cylinders:
[#- Dia. x Stroke]
3 - 10 x 12
Gear Ratio:
2.05
Wheel Dia.:
29.5"
Gauge:
std.
Boiler:
[Style - Dia.]

E.W.T. - 42.125"
Boiler Pressure:
In Lbs. (PSI)
180
Tractive Effort:
16,886 Lbs.
Factor of
Adhesion:

5.13
Maximum
Safe Speed:

17.1
Fuel Type:
Anthracite
Fuel Capacity:
2 Tons
Water Capacity:
1,560 Gallons
Empty Weight:
As built
69,650
Owners:
New York & Pennsylvania Co. #31, Willsboro, NY
(by 2-3-1919) New York & Pennsylvania Co., Rolfe RY #31, Wilcox, PA
(1-1926) Birmingham Rail & Loco. Co. (D) #1607, Birmingham, AL
(3-8-1926) Ingham-Burnett Lbr. Co. #31, Allison, AL
(8-30-1927) Hutchison-Moore Lbr. Co. #31, Allison, AL
(4-20-1929) Hutchison Moore Lbr. Co. Mississippi & Western RR #31, Fouke, MS
Disposition: Scrapped
Additional Notes:
