Lima Locomotive & Machine Co.

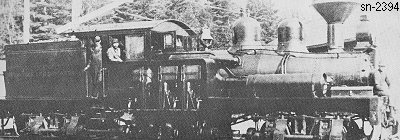

Photo Credit:
Walker Transportation collection, Beverly Historical Society
Shop Number 2394 - Built for: Woodstock Lbr. Co.
{1,833rd Lima Built Shay}
Built:
6-16-1911
Class:
B
50-2
Trucks:
2
Cylinders:
[#- Dia. x Stroke]
3 - 11 x 12
Gear Ratio:
2.211
Wheel Dia.:
32"
Gauge:
std.
Boiler:
[Style - Dia.]

E.W.T. - 44.25"
Boiler Pressure:
In Lbs. (PSI)
200
Tractive Effort:
22,563 Lbs.
Factor of
Adhesion:

4.79
Maximum
Safe Speed:

17.2
Fuel Type:
Coal
Fuel Capacity:
3.75 Tons
Water Capacity:
2,200 Gallons
Empty Weight:
As built
83,700
Owners:
Woodstock Lbr. Co., Woodstock & Thornton Gore RR #4, Woodstock, NH
(1913) Leased to: W. D. Veazey & Co. #4, West Thornton, NH
(1917) The Parker-Young Co., Beebe River RR #4, Beebe River, NH
(5-1-1924) The Parker-Young Co., East Branch & Lincoln RR #4 later #2 (1926), Lincoln, NH
(10-6-1946) Marcalus Mfg. Co., East Branch & Lincoln RR #2, Lincoln, NH
Disposition: (1950) Scrapped at Lincoln, NH
Additional Notes:
