Lima Locomotive & Machine Co.


Photo Credit:

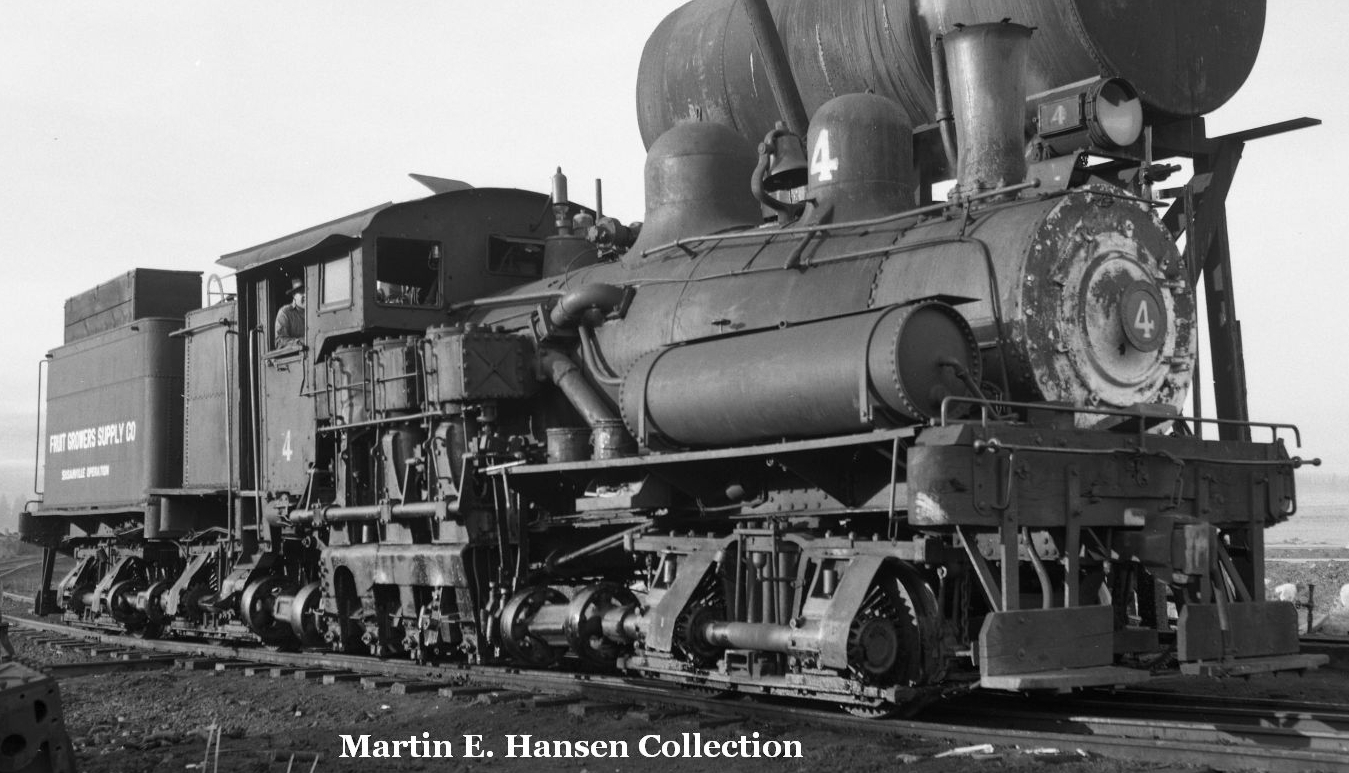

Top: Martin E. Hansen collection

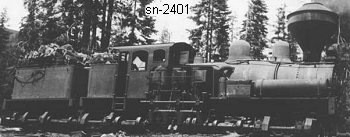

Bottom: Heritage Junction Museum collection
Shop Number 2401 - Built for: McCloud River Lbr. Co.
{1,840th Lima Built Shay}
Built:
2-15-1911
Class:
C
90-3
Trucks:
3
Cylinders:
[#- Dia. x Stroke]
3 - 14.5 x 15
Gear Ratio:
2.05
Wheel Dia.:
36"
Gauge:
std.
Boiler:
[Style - Dia.]
E.W.T. - 58"
Boiler Pressure:
In Lbs. (PSI)
200
 Tractive Effort:
40,407 Lbs.
 Factor of
Adhesion:
4.64
 Maximum
Safe Speed:
20.9
Fuel Type:
Wood
Fuel Capacity:
2.5 Cords
Water Capacity:
4,000 Gallons
Empty Weight:
As built
153,100
Owners:
McCloud River Lbr. Co., McCloud River RR #16 (1st), McCloud, CA
(4-24-1924) Fruit Growers Supply Co. #4, Susanville, CA
Fruit Growers Supply Co., Hilt, CA
Disposition: Scrapped Converted to oil burner
Additional Notes: Shipped to: Sisson, CA
