Lima Locomotive & Machine Co.
Photo Credit:
Left: Jack Holst collection
Right: Rick Aubin collection

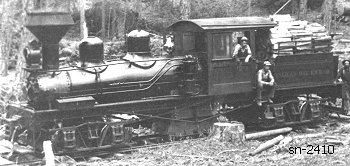

Shop Number 2410 - Built for: Pelican Bay Lbr. Co.
{1,849th Lima Built Shay}
Built:
9-25-1911
Class:
B
28-2
Trucks:
2
Cylinders:
[#- Dia. x Stroke]
3 - 8 x 10
Gear Ratio:
3.071
Wheel Dia.:
27.5"
Gauge:
std.
Boiler:
[Style - Dia.]

E.W.T. - 35.375"
Boiler Pressure:
In Lbs. (PSI)
160
Tractive Effort:
12,865 Lbs.
Factor of
Adhesion:

4.83
Maximum
Safe Speed:

10.7
Fuel Type:
Wood
Fuel Capacity:
1.25 Cords
Water Capacity:
850 Gallons
Empty Weight:
As built
52,500
Owners:
Norman B. Livermore & Co. (D), San Francisco, CA
Pelican Bay Lbr. Co. #1, Odessa, OR
Shaw-Bertram Lbr. Co. #1, Kirk, OR
California-Oregon Power Co. #1, Thrall, CA
(7-28-1925) For sale at Copco, CA
(9-24-1926) Snellstrom Brothers #2, Vaughn, OR
(7-18-1927) O. P. Matson Lbr. Co. #2, Flagg [McGlynn], OR
(1-14-1929) Independent Foundry Co. (D)
(1929) Clackamas Fir Lbr. Co. #1, Beaver Creek, OR
(12-18-1929) Leased to: Molalla Lbr. Co. #1, Beaver Creek, OR
Disposition: Scrapped
Additional Notes:
