Lima Locomotive & Machine Co.

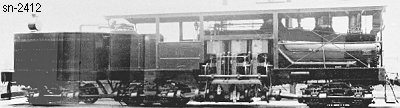

Photo Credit:
George R. Kadelak collection (BP 3-1911)
Shop Number 2412 - Built for: Eastman, Gardiner & Co.
{1,851st Lima Built Shay}
Built:
3-30-1911
Class:
C
65-3
Trucks:
3
Cylinders:
[#- Dia. x Stroke]
3 - 12 x 12
Gear Ratio:
2.211
Wheel Dia.:
32"
Gauge:
std.
Boiler:
[Style - Dia.]
E.W.T. - 46.375"
Boiler Pressure:
In Lbs. (PSI)
200
 Tractive Effort:
26,852 Lbs.
 Factor of
Adhesion:
5.25
 Maximum
Safe Speed:
14.2
Fuel Type:
Wood
Fuel Capacity:
2.5 Cords
Water Capacity:
3,000 Gallons
Empty Weight:
As built
115,700
Owners:
Eastman, Gardiner & Co., Laurel & Tallahoma Western RY #66, Laurel, MS
Disposition: Scrapped
Additional Notes:
