Lima Locomotive & Machine Co.

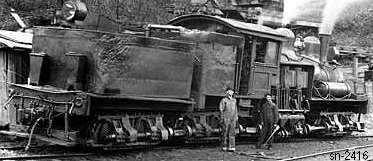

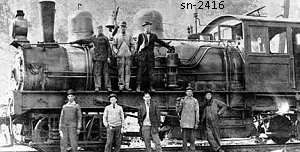

Photo Credit:
Both: Little River RR Museum collection
Shop Number 2416 - Built for: Little River Lbr. Co.
{1,855th Lima Built Shay}
Built:
1-26-1911
Class:
C
70-3
Trucks:
3
Cylinders:
[#- Dia. x Stroke]
3 - 12 x 15
Gear Ratio:
2.25
Wheel Dia.:
36"
Gauge:
std.
Boiler:
[Style - Dia.]
E.W.T. - 50"
Boiler Pressure:
In Lbs. (PSI)
200
 Tractive Effort:
30,375 Lbs.
 Factor of
Adhesion:
5.04
 Maximum
Safe Speed:
19.0
Fuel Type:
Coal
Fuel Capacity:
5 Tons
Water Capacity:
3,000 Gallons
Empty Weight:
As built
121,050
Owners:
Little River Lbr. Co., Little River RR #9, Townsend, TN
(2-1914) Serious wreck required complete rebuild
(1933) Both 2416 & 2836 wrecked and destroyed in same accident.
Disposition: (1933) wrecked and scrapped
Additional Notes: Shipped to: Walland
