Lima Machine Works

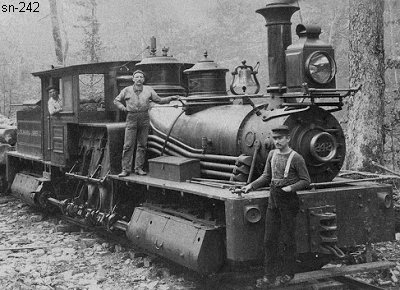

Photo Credit:
by William Townsend Clarke
Shop Number 242 - Built for: Lackawanna Lbr. Co.
{208th Lima Built Shay}
Built:
6-22-1889
Class:
B
28-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 10x10
Gear Ratio:
2.050
Wheel Dia.:
29.5"
Gauge:
std.
Boiler:
[Style - Dia.]

W.T. - 40"
Boiler Pressure:
In Lbs. (PSI)
180
Tractive Effort:
17,072 Lbs.
Factor of
Adhesion:

3.97
Maximum
Safe Speed:

17.1
Fuel Type:
Coal
Fuel Capacity:
1.75 Tons
Water Capacity:
1,038 Gallons
Empty Weight:
As built
44,000
Owners:
Lackawanna Lbr. Co. #242, Mina, PA
Stimson Mill Co., Marysville & Northern RY #242, Bryant, WA
(1-24-1921) Snohomish Log. Co., Snohomish, WA
(7-19-1921) Campbell Lbr. Co. #1, Redmond, WA
Disposition: (4-30-1926) Scrapped
Additional Notes:
