Lima Locomotive & Machine Co.

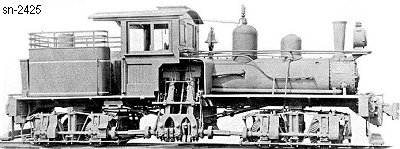

Photo Credit:
George R. Kadelak collection (BP 2-1911)
Shop Number 2425 - Built for: The Williams-Lee Lbr. & Mfg. Co.
{1,864th Lima Built Shay}
Built:
2-21-1911
Class:
A
18-2
Trucks:
2
Cylinders:
[#- Dia. x Stroke]
2 - 7 x 12
Gear Ratio:
3.071
Wheel Dia.:
26"
Gauge:
std.
Boiler:
[Style - Dia.]
ST. - 31.5"
Boiler Pressure:
In Lbs. (PSI)
160
 Tractive Effort:
8,334 Lbs.
 Factor of
Adhesion:
5.61
 Maximum
Safe Speed:
10.1
Fuel Type:
Wood
Fuel Capacity:
0.75 Cord
Water Capacity:
720 Gallons
Empty Weight:
As built
34,600
Owners:
The Williams-Lee Lbr. & Mfg. Co. #1, Chipley, FL
(1918) Lima Locomotive Works Inc. #2425, Lima, OH; Repossessed & rebuilt, used as yard switcher
(3-6-1919) Sparkman Hardwood Lbr. Co. #5, Sparkman, AR
Disposition: Scrapped
Additional Notes: Converted to wood burner
May have been used as yard engine at Lima for a short time.
