Lima Locomotive & Machine Co.

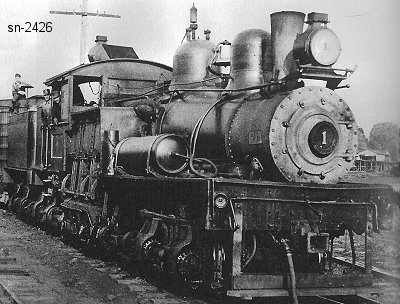

Photo Credit:
Jerry Ledford collection
Shop Number 2426 - Built for: Andrews Lbr. Co.
{1,865th Lima Built Shay}
Built:
10-31-1911
Class:
C
70-3
Trucks:
3
Cylinders:
[#- Dia. x Stroke]
3 - 12 x 15
Gear Ratio:
2.25
Wheel Dia.:
36"
Gauge:
std.
Boiler:
[Style - Dia.]
E.W.T. - 50"
Boiler Pressure:
In Lbs. (PSI)
200
 Tractive Effort:
30,375 Lbs.
 Factor of
Adhesion:
5.00
Maximum
Safe Speed:
19.0
Fuel Type:
Coal
Fuel Capacity:
5 Tons
Water Capacity:
3,000 Gallons
Empty Weight:
As built
119,900
Owners:
Andrews Lbr. Co. #1, Andrews, NC
(1922) Rebuilt by Lima
(11-18-1922) Andrews Mfg. Co. #1, Andrews, NC
(6-11-1926) Andrews Hardwood Co. #1, Andrews, NC
(8-15-1930) Cherry River Boom & Lbr. Co., Andrews, NC
Disposition: (1936) Scrapped at Andrews, NC
Additional Notes:
