Lima Locomotive & Machine Co.

Photo Credit:
Geroge R. Kadelak collection (BP 4-1911)
Shop Number 2428 - Built for: Potlatch Lbr. Co.
{1,867th Lima Built Shay}
Built:
4-10-1911
Class:
C
75-3
Trucks:
3
Cylinders:
[#- Dia. x Stroke]
3 - 12 x 15
Gear Ratio:
2.25
Wheel Dia.:
36"
Gauge:
std.
Boiler:
[Style - Dia.]
E.W.T. - 50"
Boiler Pressure:
In Lbs. (PSI)
200
 Tractive Effort:
30,375 Lbs.
 Factor of
Adhesion:
4.95
 Maximum
Safe Speed:
19.0
Fuel Type:
Wood / Coal
 Fuel Capacity:
2.5 Cords / 5 Tons
 Water Capacity:
3,000 Gallons
Empty Weight:
As built
124,190
Owners:
Hofius Steel & Equip. Co. (D), Seattle, WA
Potlatch Lbr. Co., Inc. #104, Potlatch, ID
(c1921) Potlatch Lbr. Co., Inc. #104, Bovill, ID
(c1926) Potlatch Lbr. Co., Inc. #104, Elk River, ID
(1931) Potlatch Forests, Inc., Washington Idaho & Montana RY #104, Headquarters, ID
Disposition: Scrapped
Additional Notes: Converted to oil burner

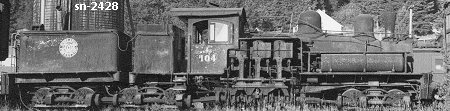

(7-20-1947) Photo by R. Gibbons at Headquarters, ID :
