Lima Machine Works

Photo Credit:

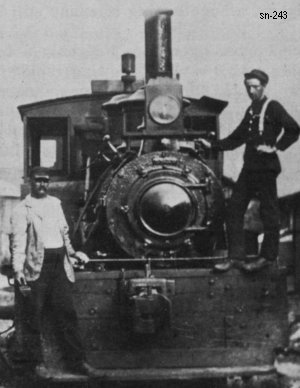

Front: by Charles Gee

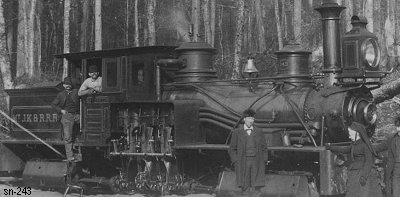

Top Right: Kane Family collection (c1889)

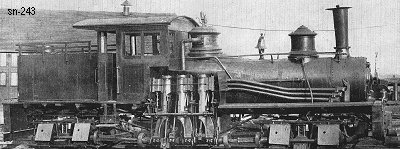

Lower Right: C. W. Witbeck collection (S.I.&E. photo c1921)
Shop Number 243 - Built for: McClelland & Kane
{209th Lima Built Shay}
Built:
7-15-1889
Class:
B
28-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 10x10
Gear Ratio:
2.050
Wheel Dia.:
28"
Gauge:
std.
Boiler:
[Style - Dia.]

W.T. - 40"
Boiler Pressure:
In Lbs. (PSI)
160
Tractive Effort:
13,179 Lbs.
Factor of
Adhesion:

4.27
Maximum
Safe Speed:

16.3
Fuel Type:
Coal
Fuel Capacity:
1.75 Tons
Water Capacity:
1,038 Gallons
Empty Weight:
As built
42,900
Owners:
McClelland & Kane, Mt. Jewett, Kinzua & Riterville RR #243 later (1891) #1 "DAN FENTON", Kushequa, PA
(9-3-1891) Rebuilt by Lima Machine Works (for McClelland & Kane)
(1892) Raine & Raine #1, Rainestown, PA
(c1902) Campbell & Hagenbach, Asaph RR #1, Asaph, PA
(c1904) Sanford-Bodge Lbr. Co., S. L. Sanford, Zona, LA
Southern Iron & Equip. Co. (D) #1649, Atlanta, GA
(1-26-1921) J. E. Tartt, Akron, MS
Southern Iron & Equip. Co. (D) #1809, Atlanta, GA
(4-17-1924) Tishomingo Land & Lbr. Co., Tishomingo, MS
Disposition: Scrapped
