Lima Locomotive & Machine Co.

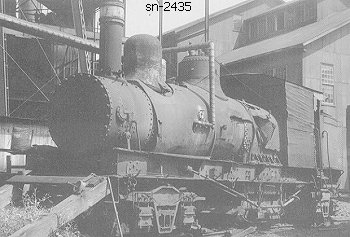

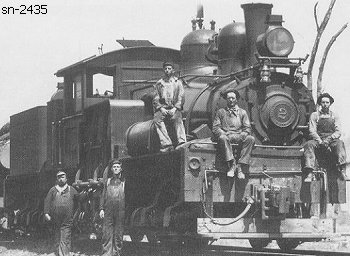

Photo Credit:
Left: by Gene Connolly - Right: George Collins collection
Shop Number 2435 - Built for: Meadow River Lbr. Co.
{1,874th Lima Built Shay}
Built:
8-1-1911
Class:
C
70-3
Trucks:
3
Cylinders:
[#- Dia. x Stroke]
3 - 12 x 15
Gear Ratio:
2.25
Wheel Dia.:
36"
Gauge:
std.
Boiler:
[Style - Dia.]

E.W.T. - 50"
Boiler Pressure:
In Lbs. (PSI)
200
Tractive Effort:
30,375 Lbs.
Factor of
Adhesion:

4.92
Maximum
Safe Speed:

19.0
Fuel Type:
Coal
Fuel Capacity:
5 Tons
Water Capacity:
3,000 Gallons
Empty Weight:
As built
117,475
Owners:
Meadow River Lbr. Co. #2, Rainelle, WV
(1-6-1950) Out of service, used as stationary boiler for mill
Disposition: (c1951) Scrapped at mill
Additional Notes: Shipped to: Meadow Creek, WV
