Lima Locomotive & Machine Co.

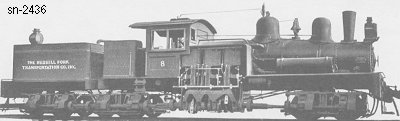

Photo Credit:
George R. Kadelak collection (BP 3-1911)
Shop Number 2436 - Built for: Honaker Lbr. Co.
{1,875th Lima Built Shay}
Built:
3-18-1911
Class:
C
70-3
Trucks:
3
Cylinders:
[#- Dia. x Stroke]
3 - 12 x 15
Gear Ratio:
2.25
Wheel Dia.:
36"
Gauge:
std.
Boiler:
[Style - Dia.]
E.W.T. - 50"
Boiler Pressure:
In Lbs. (PSI)
200
 Tractive Effort:
30,375 Lbs.
 Factor of
Adhesion:
4.95
 Maximum
Safe Speed:
19.0
Fuel Type:
Coal
Fuel Capacity:
5 Tons
Water Capacity:
3,000 Gallons
Empty Weight:
As built
118,600
Owners:
Honaker Lbr. Co., (Russell Fork Transportation Co.) #8, Honaker, VA
The White Oak Lbr. Co. #8, Putnam, VA
(5-5-1927) Appalachian Lbr. Co. #8, Pickens, SC
Disposition: Scrapped
Additional Notes:
