Lima Locomotive & Machine Co.
Photo Credit:

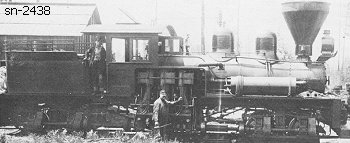

Top: Gene Dorman collection

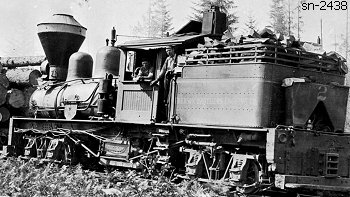

Left: Bert Kellogg collection
Shop Number 2438 - Built for: Honaker Lbr. Co. (cancelled)
{1,877th Lima Built Shay}
Built:
4-7-1911
Class:
B
42-2
Trucks:
2
Cylinders:
[#- Dia. x Stroke]
3 - 10 x 12
Gear Ratio:
2.05
Wheel Dia.:
29.5"
Gauge:
std.
Boiler:
[Style - Dia.]
E.W.T. - 42.125"
Boiler Pressure:
In Lbs. (PSI)
180
 Tractive Effort:
16,886 Lbs.
 Factor of
Adhesion:
4.90
 Maximum
Safe Speed:
17.1
Fuel Type:
Wood
Fuel Capacity:
1.5 Cords
Water Capacity:
1,560 Gallons
Empty Weight:
As built
67,600
Owners:
Hofius Steel & Equip. Co. (D), Seattle, WA
Fredson Brothers Log. Co. #2 (1st), Shelton, WA
(9-27-1927) Phoenix Log. Co. #2 (3rd), Potlatch, WA
(3-6-1929) Portland Iron Works (D), Portland, OR
Disposition: Scrapped
Additional Notes:
