Lima Locomotive & Machine Co.
Photo Credits:

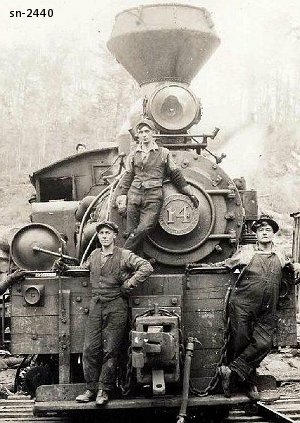

Front: by unknown

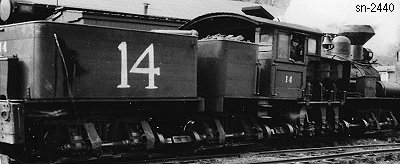

Right: Terry Cummings collection (1946)
Shop Number 2440 - Built for: Cherry River Boom & Lbr. Co.
{1,879th Lima Built Shay}
Built:
5-29-1911
Class:
C
80-3
Trucks:
3
Cylinders:
[#- Dia. x Stroke]
3 - 13.5 x 15
Gear Ratio:
2.05
Wheel Dia.:
36"
Gauge:
std.
Boiler:
[Style - Dia.]

E.W.T. - 50"
Boiler Pressure:
In Lbs. (PSI)
200
Tractive Effort:
35,026 Lbs.
Factor of
Adhesion:

5.07
Maximum
Safe Speed:

20.9
Fuel Type:
Coal
Fuel Capacity:
5 Tons
Water Capacity:
3,500 Gallons
Empty Weight:
As built
142,400
Owners:
Cherry River Boom & Lbr. Co. #14, Richwood, WV
(late 1947) West Virginia Coal & Coke Co. #14, Omar, WV
Disposition: Scrapped
Additional Notes:
