Lima Locomotive & Machine Co.

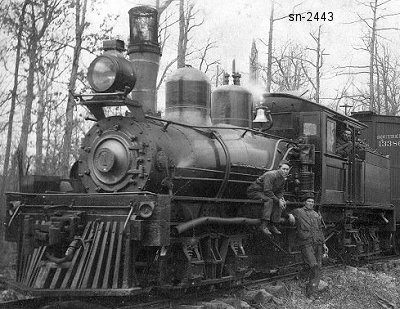

Photo Credit:
Jimmy B. Lassen collection
Shop Number 2443 - Built for: John Heilman Lbr. Co.
{1,882nd Lima Built Shay}
Built:
5-1-1911
Class:
B
42-2
Trucks:
2
Cylinders:
[#- Dia. x Stroke]
3 - 10 x 12
Gear Ratio:
2.529
Wheel Dia.:
29.5"
Gauge:
std.
Boiler:
[Style - Dia.]
E.W.T. - 42.125"
Boiler Pressure:
In Lbs. (PSI)
180
 Tractive Effort:
16,886 Lbs.
 Factor of
Adhesion:
5.08
 Maximum
Safe Speed:
17.1
Fuel Type:
Coal
Fuel Capacity:
2 Tons
Water Capacity:
1,560 Gallons
Empty Weight:
As built
68,800
Owners:
John Heilman Lbr. Co., Greeneville & Nolichucky RR *#1, Greeneville, TN
(1-1919) For sale at Greeneville, TN, by H. S. White Lbr. Co.
(3-23-1920) Virgin Pine Lbr. Co. #3, Piave, MS
Disposition: Scrapped
Additional Notes: * Local name was Peavine Railroad
