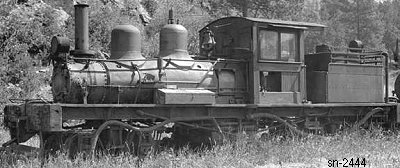

Lima Locomotive & Machine Co.

Photo Credit:
Otto C. Perry collection (1915)
Shop Number 2444 - Built for: Lacey Lbr. Co.
{1,883rd Lima Built Shay}
Built:
4-7-1911
Class:
B
24-2
Trucks:
2
Cylinders:
[#- Dia. x Stroke]
3 - 8 x 8
Gear Ratio:
3.071
Wheel Dia.:
27.5"
Gauge:
30"
Boiler:
[Style - Dia.]
E.W.T. - 40.125"
Boiler Pressure:
In Lbs. (PSI)
160
 Tractive Effort:
10,292 Lbs.
 Factor of
Adhesion:
5.87
Maximum
Safe Speed:
510.4
Fuel Type:
Wood / Coal
 Fuel Capacity:
1 Cord / 1.25 Tons
 Water Capacity:
830 Gallons
Empty Weight:
As built
49,600
Owners:
Lacey Lbr. Co. #10, Carriere, MS; For:
Lamphere-Hinricks Co. #10, Rapid City, SD
[36"] Warren Lamb Lbr. Co. #10, Rapid City, SD
Warren Lamb Lbr. Co. #10, Fairburn, SD
Disposition: Scrapped
Additional Notes: Shipped to: Lamphere-Hinricks Co., Rapid City, SD
Converted to oil burner
