Lima Locomotive & Machine Co.

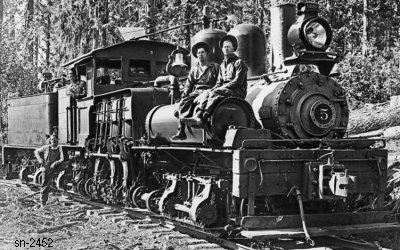

Photo Credit:
Steve Spalding collection
Shop Number 2452 - Built for: Blackwell Lbr. Co.
{1,891st Lima Built Shay}
Built:
5-18-1911
Class:
C
60-3
Trucks:
3
Cylinders:
[#-Dia. x Stroke]
3 - 12 x 12
Gear Ratio:
2.211
Wheel Dia.:
32"
Gauge:
std.
Boiler:
[Style - Dia.]
E.W.T. - 44.25"
Boiler Pressure:
In Lbs. (PSI)
200
 Tractive Effort:
26,852 Lbs.
 Factor of
Adhesion:
4.81
 Maximum
Safe Speed:
17.2
Fuel Type:
Wood / Coal
 Fuel Capacity:
2 Cords / 5 Tons
 Water Capacity:
3,000 Gallons
Empty Weight:
As built
105,600
Owners:
Hofius Steel & Equip. Co. (D), Seattle, WA
Blackwell Lbr. Co., Coeur d'Alene Southern RY #5 (2nd), Coeur d'Alene, ID
Blackwell Lbr. Co. #5, Emida, ID
Disposition: Scrapped
Additional Notes:
