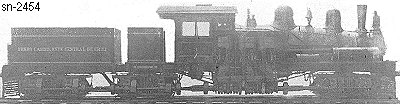

Lima Locomotive & Machine Co.

Photo Credit:
George R. Kadelak collection (BP 8-1911)
Shop Number 2454 - Built for: Ferrocarril Este Central Chile
{1,893rd Lima Built Shay}
Built:
8-10-1911
Class:
C
80-3
Trucks:
3
Cylinders:
[#-Dia. x Stroke]
3 - 13.5 x 15
Gear Ratio:
2.05
Wheel Dia.:
36"
Gauge:
66"
Boiler:
[Style - Dia.]

E.W.T. - 50"
Boiler Pressure:
In Lbs. (PSI)
200
Tractive Effort:
35,026 Lbs.
Factor of
Adhesion:

5.28
Maximum
Safe Speed:

20.9
Fuel Type:
Coal
Fuel Capacity:
5 Tons
Water Capacity:
3,500 Gallons
Empty Weight:
As built
149,750
Owners:
Alex. L. Secretan & Co. Ltd. (D), London, E. C. England
F. C. Este Central Chile, The Chilean Eastern Central RY Co. #3, Lebu, Chile
(1934) Chilean State RY #648, Lebu, Chile
Disposition: (1949) Scrapped in Lebu, Chile
Additional Notes: shipped to New York City, NY for export to Chile
