Lima Locomotive & Machine Co.

Photo Credit:

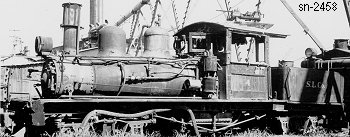

Left: by John Henderson (3-17-1940) - Right: Martin E. Hansen collection
Shop Number 2458 - Built for: Swayne Lbr. Co.
{1,897th Lima Built Shay}
Built:
6-17-1911
Class:
B
24-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 8 x 8
Gear Ratio:
3.071
Wheel Dia.:
27.5"
Gauge:
36"
 Boiler:
[Style - Dia.]
E.W.T. - 33.5"
Boiler Pressure:
In Lbs. (PSI)
160
 Tractive Effort:
10,292 Lbs.
 Factor of
Adhesion:
5.63
 Maximum
Safe Speed:
10.7
Fuel Type:
Wood
Fuel Capacity:
1 Cord
Water Capacity:
850 Gallons
Empty Weight:
As built
48,600
Owners:
Norman B. Livermore & Co. (D) #2, San Francisco, CA
Swayne Lbr. Co. #2, Swayne Hill, CA
(1917) Swayne Lbr. Co. #2 (1st) later #4 (2nd), Oroville, CA
(1940) [Std.] United Commercial Co. (D), San Francisco, CA
Disposition: (1940) Scrapped
Additional Notes: Shipped to: Swayne Siding, Blinzig, CA
