Lima Locomotive & Machine Co.

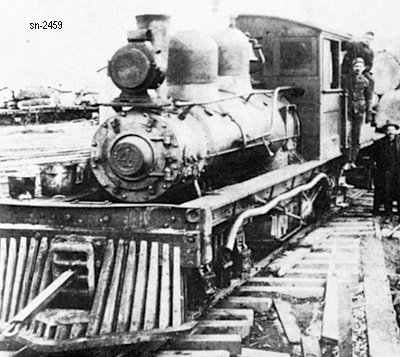

Photo Credit:
by Frank E. Wilson
Shop Number 2459 - Built for: Wilson Lbr. Co.
{1,898th Lima Built Shay}
Built:
6-21-1911
Class:
B
24-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 8 x 8
Gear Ratio:
3.071
Wheel Dia.:
27.5"
Gauge:
36"
Boiler:
[Style - Dia.]
E.W.T. - 33.5"
Boiler Pressure:
In Lbs. (PSI)
160
 Tractive Effort:
10,292 Lbs.
 Factor of
Adhesion:
5.20
 Maximum
Safe Speed:
10.7
Fuel Type:
Coal
Fuel Capacity:
1.25 Tons
Water Capacity:
850 Gallons
Empty Weight:
As built
43,400
Owners:
Wilson Lbr. Co., Valley River RR #4, Mill Creek, WV
Disposition: (1940) Scrapped
Additional Notes:
