Lima Locomotive & Machine Co.

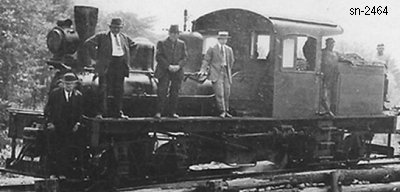

Photo Credit:
Benjamin F. G. Kline collection (1920)

Shop Number 2464	-	Built for: Lycoming Tbr. & Lbr. Co.
{1,903rd Lima Built Shay}

Built: 7-15-1911	Class: A 18-2	Trucks: 2	Cylinders: [#-Dia. x Stroke] 2 - 7 x 12
Gear Ratio: 3.071	Wheel Dia.: 26"	Gauge: 36"	Boiler: [Style - Dia.] ST. - 31.5"
Boiler Pressure: In Lbs. (PSI) 160	Tractive Effort: 8,334 Lbs.	Factor of Adhesion: 5.27	Maximum Safe Speed: 10.1
Fuel Type: Coal	Fuel Capacity: 1.25 Tons	Water Capacity: 800 Gallons	Empty Weight: As built 35,600
Owners: Lycoming Tbr & Lbr. Co. #1, Roxbury, VA Samuel Straus #3, Inwood, PA (1923) Samuel Straus, #3, Penryn, PA
Disposition: (c1941) Scrapped
Additional Notes: Shipped to: Providence Forge, VA
