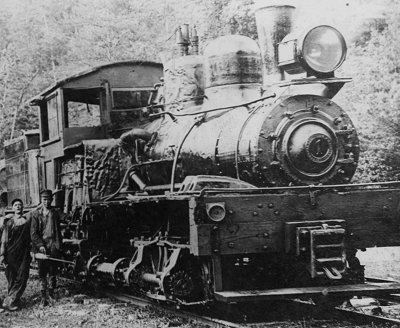

Lima Locomotive & Machine Co.

Photo Credit:
Charles Welsh Galloway, Jr. collection
Shop Number 2466 - Built for: Gloucester Lbr. Co.
{1,905th Lima Built Shay}
Built:
7-25-1911
Class:
B
42-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 10 x 12
Gear Ratio:
2.05
Wheel Dia.:
29.5"
Gauge:
std.
Boiler:
[Style - Dia.]

E.W.T. - 42.125"
Boiler Pressure:
In Lbs. (PSI)
180
Tractive Effort:
16,886 Lbs.
Factor of
Adhesion:

5.00
Maximum
Safe Speed:

17.1
Fuel Type:
Coal
Fuel Capacity:
2 Tons
Water Capacity:
1,560 Gallons
Empty Weight:
As built
67,500
Owners:
Lima Locomotive & Machine Co.; Built to lease
Lease: Gloucester Lbr. Co. #1, Rosman, NC
(1912) Gloucester Lbr. Co. #1, Rosman, NC
(5-1930) Donald Campbell Lbr. Co. #1, Rosman, NC
Disposition: Scrapped
Additional Notes:
