Lima Machine Works

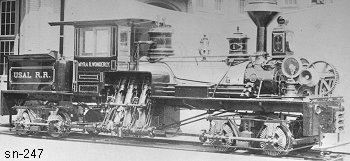

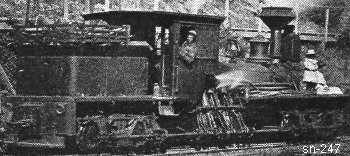

Photo Credit:
Both: Baldwin-Lima-Hamilton Corporation collection (BP 8-1889) - Right: S. T. Borden collection
Shop Number 247 - Built for: Usal Redwood Co.
{213th Lima Built Shay}
Built:
9-9-1889
Class:
B
15-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 7x9
Gear Ratio:
3.071
Wheel Dia.:
26"
Gauge:
std.
Boiler:
[Style - Dia.]
W.T.- 32"
Boiler Pressure:
In Lbs. (PSI)
160
 Tractive Effort:
9,373 Lbs.
 Factor of
Adhesion:
4.66
 Maximum
Safe Speed:
10.1
Fuel Type:
Coal
Fuel Capacity:
1 Ton
Water Capacity:
680 Gallons
Empty Weight:
As built
35,600
Owners:
Usal Redwood Co., Usal RR #1, "MYRA R. WONDERLY", Rockport, CA
(1903) Glen Blair Redwood Co. #1, Glen Blair, CA
(5-6-1929) Union Lbr. Co. #1, Fort Bragg, CA
Disposition: Scrapped 1947
Additional Notes:
