Lima Locomotive & Machine Co.

Photo Credit:
Marc Reusser collection

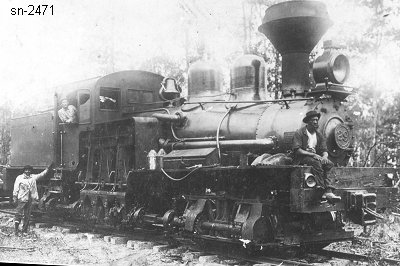

Shop Number 2471 - Built for: Frost-Johnson Lbr. Co.
{1,910th Lima Built Shay}
Built:
11-11-1911
Class:
B
50-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 11 x 12
Gear Ratio:
2.211
Wheel Dia.:
32"
Gauge:
std.
Boiler:
[Style - Dia.]
E.W.T. - 44.25"
Boiler Pressure:
In Lbs. (PSI)
200
 Tractive Effort:
22,563 Lbs.
 Factor of
Adhesion:
4.37
Maximum
Safe Speed:
17.2
Fuel Type:
Wood
Fuel Capacity:
3.25 Cords
Water Capacity:
1,750 Gallons
Empty Weight:
As built
80,100
Owners:
Frost-Johnson Lbr. Co. Nacogdoches & Southeastern RR #29, Nacogdoches, TX
(7-1925) Frost Lbr. Ind. Inc. #29, Nacogdoches, TX
Disposition: Scrapped
Additional Notes:
