Lima Locomotive & Machine Co.

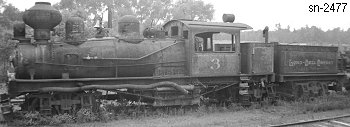

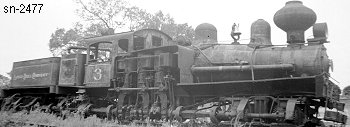

Photo Credit:
Both: by John Morgan from Tony Howe collection (c1936)
Shop Number 2477 - Built for: Bentley & Emery
{1,916th Lima Built Shay}
Built:
11-17-1911
Class:
C
80-3
Trucks:
3
Cylinders:
[#-Dia. x Stroke]
3 - 13.5 x 15
Gear Ratio:
2.05
Wheel Dia.:
36"
Gauge:
std.
Boiler:
[Style - Dia.]
E.W.T. - 50"
Boiler Pressure:
In Lbs. (PSI)
200
 Tractive Effort:
35,026 Lbs.
 Factor of
Adhesion:
4.89
 Maximum
Safe Speed:
20.9
Fuel Type:
Wood
Fuel Capacity:
2.5 Cords
Water Capacity:
3,000 Gallons
Empty Weight:
As built
143,800
Owners:
Bentley & Emery #3, Richton, MS
Southern Iron & Equip. Co. (D) #1276, Atlanta, GA
(4-15-1918) Long-Bell Co. (Long-Bell Lbr. Co.) #3, Quitman, MS
(11-1-1922) Long-Bell Lbr. Co. #3, Quitman, MS
(7-21-1936) Stored in Crandall MS
Disposition: (after 1937) Scrapped at Quitman, MS
Additional Notes:
