Lima Locomotive & Machine Co.

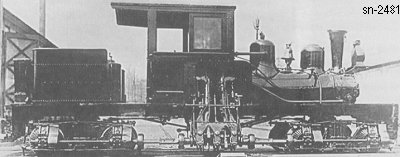

Photo Credit:
Birmingham Rail & Locomotive Company Archives (1915)
Shop Number 2481 - Built for: Harris & Cole Brothers, Inc.
{1,920th Lima Built Shay}
Built:
9-25-1911
Class:
A
13-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
2 - 6 x 10
Gear Ratio:
3.077
Wheel Dia.:
22"
Gauge:
std.
Boiler:
[Style - Dia.]
ST. - 27.5"
Boiler Pressure:
In Lbs. (PSI)
150
 Tractive Effort:
5,664 Lbs.
 Factor of
Adhesion:
5.07
Maximum
Safe Speed:
8.5
Fuel Type:
Coal
Fuel Capacity:
0.5 Ton
Water Capacity:
400 Gallons
Empty Weight:
As built
24,300
Owners:
Harris & Cole Brothers, Inc. #2, Sulligent, AL
(4-1913) Kentucky Lbr. Co. #2, Sulligent, AL
Georgia Car & Loco. Co. (D) #274, Atlanta, GA
(3-1915) Birmingham Rail & Loco. Co. (D) #1062, Birmingham, AL
(8-24-1916) E. F. Nunn & Co., Shuqualak, MS
(8-18-1924) For sale
(3-29-1928) For sale, will probabily be scrapped
Disposition: Scrapped c1928
Additional Notes:
