Lima Locomotive & Machine Co.

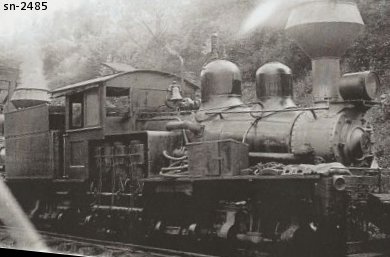

Photo Credit:
David Thomas collection (8-15-1936)
Shop Number 2485 - Built for: Pardee & Curtin Lbr. Co.
{1,924th Lima Built Shay}
Built:
10-21-1911
Class:
B
36-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 10 x 10
Gear Ratio:
2.45
Wheel Dia.:
29"
Gauge:
36"
Boiler:
[Style - Dia.]

E.W.T. - 39.375"
Boiler Pressure:
In Lbs. (PSI)
180
Tractive Effort:
17,108 Lbs.
Factor of
Adhesion:

4.67
Maximum
Safe Speed:

14.1
Fuel Type:
Coal
Fuel Capacity:
1.75 Tons
Water Capacity:
1,500 Gallons
Empty Weight:
As built
63,800
Owners:
Pardee & Curtin Lbr. Co., Cherry & Hominy RR #10, Curtin, WV
Pardee & Curtin Lbr. Co. #10, Bergoo, WV
Disposition: Scrapped at Bergoo, WV
Additional Notes:
