Lima Locomotive Corporation

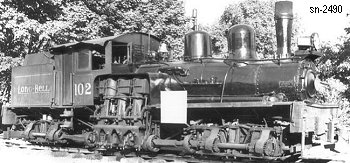

Photo Credit:
Left: by Albert Farrow - Right: Marc Reusser collection
Shop Number 2490 - Built for: Western Cooperage Co.
{1,929th Lima Built Shay}
Built:
2-14-1912
Class:
B
42-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 10 x 12
Gear Ratio:
2.05
Wheel Dia.:
29.5"
Gauge:
std.
Boiler:
[Style - Dia.]
E.W.T. - 42.125"
Boiler Pressure:
In Lbs. (PSI)
180
 Tractive Effort:
16,886 Lbs.
 Factor of
Adhesion:
5.18
 Maximum
Safe Speed:
17.1
Fuel Type:
Oil
Fuel Capacity:
800 Gals.
Water Capacity:
1,560 Gallons
Empty Weight:
As built
71,150
Owners:
Hofius Steel & Equip. Co. (D), Seattle, WA
Western Cooperage Co., Astoria Southern RY #2, Olney, OR
(1-1922) Clark County Tbr. Co., Yacolt, WA
(by 6-9-1925) Porter-Carstens Log. Co., Estacada, OR
(5-1928) Western Loggers Machinery Co. (D), Portland, OR
(5-1928) Oregon-American Lbr. Co. #2 (2nd), Keasey, OR
(1935) Oregon-American Lbr. Corp. #2 later #102 (in 1938), Keasey, OR
(1953) Long-Bell Lbr. Co., #102, Vernonia, OR
(1956) International Paper Co., Long-Bell Division #102, Vernonia, OR
(1958) City of Vernonia #102, Vernonia, OR
(1993) Removed from display and disassembeled for restoration
On display at Vernonia Park, Vernonia, OR
Disposition: on display @ Vernonia Park, Vernonia, OR
Additional Notes: Shipped to: Portland, OR
SLc Survivor List
(1993) removed from display and disassembeled for restoration, Vernonia, OR
(1990's) Back on display
Future plans for the Shay is preservation only by City
