Lima Locomotive Corporation

Photo Credit:
by Al Phelps

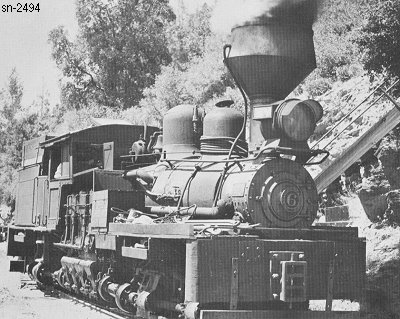

Shop Number 2494 - Built for: Mountain Copper Co. Ltd.
{1,933rd Lima Built Shay}
Built:
1-20-1912
Class:
B
36-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 10 x 10
Gear Ratio:
2.05
Wheel Dia.:
29"
Gauge:
36"
Boiler:
[Style - Dia.]
E.W.T. - 39.375"
Boiler Pressure:
In Lbs. (PSI)
180
 Tractive Effort:
14,315 Lbs.
 Factor of
Adhesion:
5.44
 Maximum
Safe Speed:
16.8
Fuel Type:
Oil
Fuel Capacity:
800 Gals.
Water Capacity:
1,200 Gallons
Empty Weight:
As built
63,750
Owners:
Norman B. Livermore & Co. (D), San Francisco, CA
Mountain Copper Co. Ltd., Iron Mountain RY #6, Keswick, CA
(7-23-1925) Stored at Matheson, CA
(11-1934) Michigan-California Lbr. Co. #6 (2nd), Camino, CA
(1942) wrecked
Disposition: (6-1942) Scrapped
Additional Notes:
