Lima Locomotive Corporation

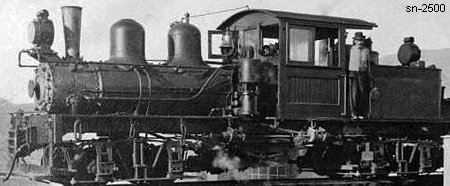

Photo Credit:
University of Nevada, Las Vegas Special Collections
(Leonard Fayle collection)
Shop Number 2500 - Built for: Yellow Pine Mining Co.
{1,939th Lima Built Shay}
Built:
1-5-1912
Class:
A
20-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
2 - 8 x 12
Gear Ratio:
3.071
Wheel Dia.:
26"
Gauge:
36"
 Boiler:
[Style - Dia.]
ST. - 35.375"
Boiler Pressure:
In Lbs. (PSI)
160
 Tractive Effort:
10,886 Lbs.
 Factor of
Adhesion:
4.74
 Maximum
Safe Speed:
10.1
Fuel Type:
Oil
Fuel Capacity:
200 Gals.
Water Capacity:
830 Gallons
Empty Weight:
As built
44,100
Owners:
Norman B. Livermore & Co. (D), San Francisco, CA
Yellow Pine Mining Co. #1, Jean, NV
(11-1914) Wrecked, repaired
(5-03-1927) Wrecked, not repaired
Disposition: (8-15-1927) Scrapped
Additional Notes:
