Lima Locomotive Corporation

Photo Credit:
Insular Lumber Co. collection
Shop Number 2509 - Built for: Insular Lbr. Co.
{1,948th Lima Built Shay}
Built:
2-7-1912
Class:
B
42-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 10 x 12
Gear Ratio:
2.05
Wheel Dia.:
29.5"
Gauge:
42"
Boiler:
[Style - Dia.]
E.W.T. - 42.125"
Boiler Pressure:
In Lbs. (PSI)
180
 Tractive Effort:
16,886 Lbs.
 Factor of
Adhesion:
4.86
 Maximum
Safe Speed:
17.1
Fuel Type:
Wood
Fuel Capacity:
1.5 Cords
Water Capacity:
1,560 Gallons
Empty Weight:
As built
66,894
Owners: (Includes new data after 2018 Shay book completed)
Insular Lbr. Co. #3, Fabrica, Negros Occidental, U. S. Territory of the Philippines

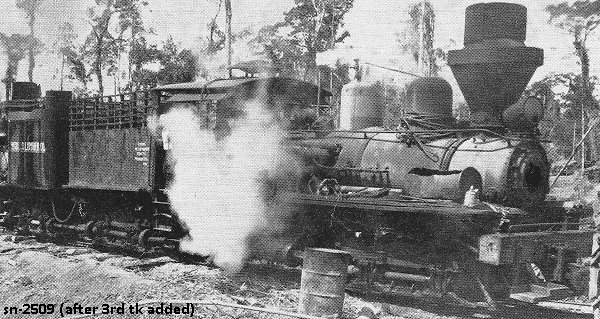

Third truck added by Insular Lumber Co.
Disposition: Scrapped
Additional Notes: Shipped to: New York City, NY
