Lima Locomotive Corporation

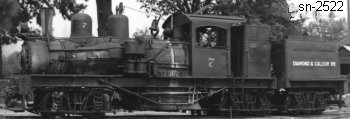

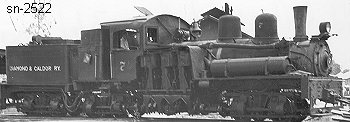

Photo Credit:
Left: Steven C. Karoly collection - Right: Steve Hauff collection
Shop Number 2522 - Built for: California Door Co.
{1,961st Lima Built Shay}
Built:
3-29-1912
Class:
C
60-3
Trucks:
3
Cylinders:
[#-Dia. x Stroke]
3 - 11 x 12
Gear Ratio:
2.529
Wheel Dia.:
32"
Gauge:
36"
Boiler:
[Style - Dia.]

E.W.T. - 44.25"
Boiler Pressure:
In Lbs. (PSI)
200
Tractive Effort:
25,820 Lbs.
Factor of
Adhesion:

4.65
Maximum
Safe Speed:

15.1
Fuel Type:
Wood
Fuel Capacity:
2 Cords
Water Capacity:
2,000 Gallons
Empty Weight:
As built
99,900
Owners:
Norman B. Livermore & Co. (D), San Francisco, CA
California Door Co. #7, Diamond Springs, CA, For:
Diamond & Caldor RY #7, Diamond Springs, CA
Disposition: (1953) Scrapped
Additional Notes: Converted to oil burner
