Lima Locomotive Corporation

Photo Credit:
David Thomas collection

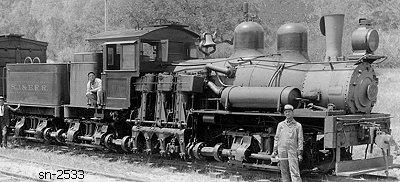

Shop Number 2533 - Built for: Big Creek RR
{1,972nd Lima Built Shay}
Built:
4-30-1912
Class:
C
60-3
Trucks:
3
Cylinders:
[#-Dia. x Stroke]
3 - 11 x 12
Gear Ratio:
2.529
Wheel Dia.:
32"
Gauge:
std.
Boiler:
[Style - Dia.]
E.W.T. - 44.25"
Boiler Pressure:
In Lbs. (PSI)
200
 Tractive Effort:
25,820 Lbs.
 Factor of
Adhesion:
4.60
 Maximum
Safe Speed:
15.1
Fuel Type:
Oil
Fuel Capacity:
1,000 Gals.
Water Capacity:
2,000 Gallons
Empty Weight:
As built
98,700
Owners:
Norman B. Livermore & Co. (D), San Francisco, CA
Stone & Webster Construction Co., Big Creek RR #100, El Prado, CA
(1913) San Joaquin & Eastern RR Co., San Joaquin & Eastern RR, #100, Auberry, CA
(1918) Jardine Machinery Co. (D), San Francisco, CA
(c1918) English Lbr. Co., Skagit Valley RR #9, Fir, WA
Disposition: (2-1944) Scrapped
Additional Notes:
