Lima Locomotive Corporation

Photo Credit:
Jimmy B. Lassen collection

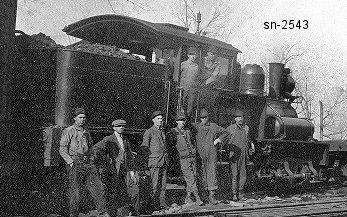

Shop Number 2543 - Built for: John Heilman Lbr. Co.
{1,982nd Lima Built Shay}
Built:
7-1-1912
Class:
B
42-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 10 x 12
Gear Ratio:
2.529
Wheel Dia.:
29.5"
Gauge:
std.
Boiler:
[Style - Dia.]
W.T. - 42"
Boiler Pressure:
In Lbs. (PSI)
180
 Tractive Effort:
20,832 Lbs.
 Factor of
Adhesion:
4.13
 Maximum
Safe Speed:
13.9
Fuel Type:
Coal
Fuel Capacity:
2 Tons
Water Capacity:
1,560 Gallons
Empty Weight:
As built
69,700
Owners:
John Heilman Lbr. Co., Greeneville & Nolichucky RR * #2, Greeneville, TN
(8-1913) Dunn-Oliver Lbr. Co., Greeneville, TN
Birmingham Rail & Loco.Co. (D), Birmingham, AL
(4-1-1918) Kaul Lbr. Co. #13, Tuscaloosa, AL
Disposition: Scrapped at Tuscaloosa, AL
Additional Notes: * Local name was Peavine Railroad
